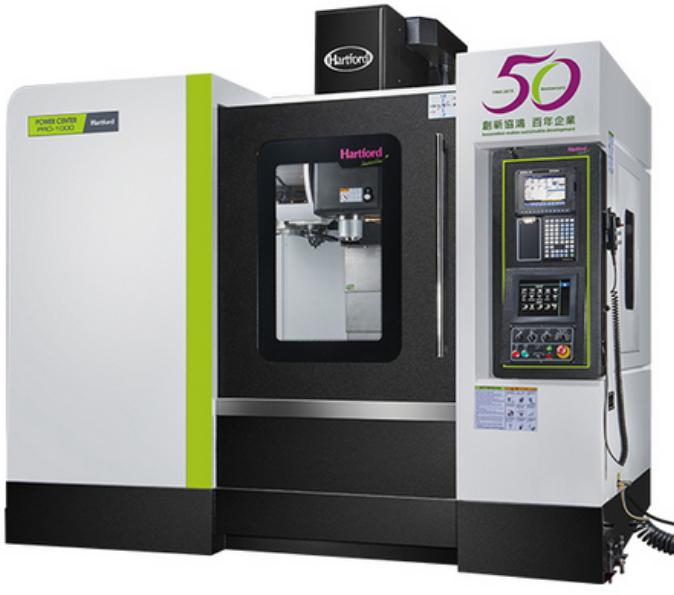

Machine Model | PRO-1000 | ||
Table | Working surface | 1150x600 | mm |
Max. table load | 700 | kg | |
Travel | Longitudinal travel (X-axis) | 1000 | mm |
Cross travel (Y-axis) | 600 | mm | |
Vertical travel (z-axis) | 630 | mm | |
Spindle | Spindle nose taper | #40 | |
Spindle speed (Pulley) | 8000 opt. 10000/12000 | rpm | |
Spindle speed (Gear) | 6000 opt. 8000 | rpm | |
Feed | Rapid traverse rate (X/Y/Z) | 20/20/20 | m/min |
ATC | Tool storage | S:20 A:24 | pcs |
Read more |

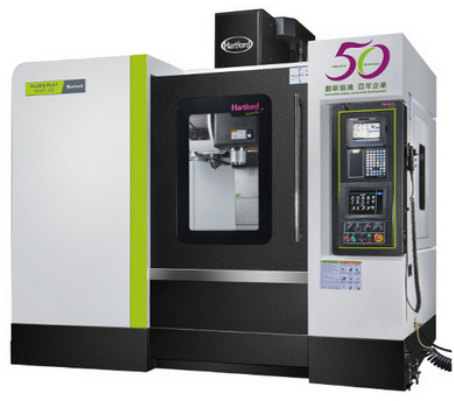

Machine Model | LG-500 | ||
Table | Working surface | 620x420 | mm |
Max. table load | 300 | kg | |
Travel | Longitudinal travel (X-axis) | 520 | mm |
Cross travel (Y-axis) | 420 | mm | |
Vertical travel (z-axis) | 450 | mm | |
Spindle | Spindle nose taper | #40 | |
Spindle speed (Pulley) | 8000 opt. 10000/12000 | rpm | |
Spindle speed (DDS) | 10000 opt. 12000 | rpm | |
Feed | Rapid traverse rate (X/Y/Z) | 32/32/32 opt. 40/40/32 | m/min |
ATC | Tool storage | A:24 | pcs |
Read more |

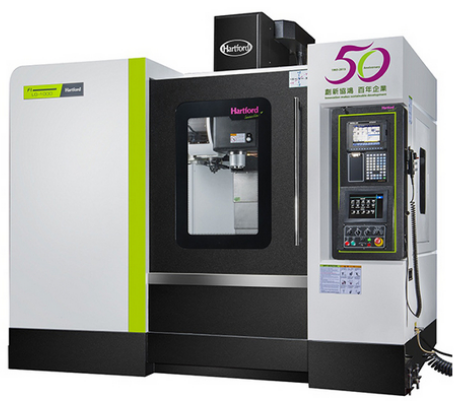

Machine Model | MVP-10 | ||
Table | Working surface | 1150x560 | mm |
Max. table load | 700 | kg | |
Travel | Longitudinal travel (X-axis) | 1050 | mm |
Cross travel (Y-axis) | 530 | mm | |
Vertical travel (z-axis) | 630 | mm | |
Spindle | Spindle nose taper | #40 | |
Spindle speed (Pulley) | 8000 opt. 10000/12000 | rpm | |
Spindle speed (DDS) | 15000 opt. 10000/12000/20000 | rpm | |
Feed | Rapid traverse rate (X/Y/Z) | 36/36/30 opt. 48/48/36 | m/min |
ATC | Tool storage | S:20 opt. A:24/30/40 | pcs |
Read more |

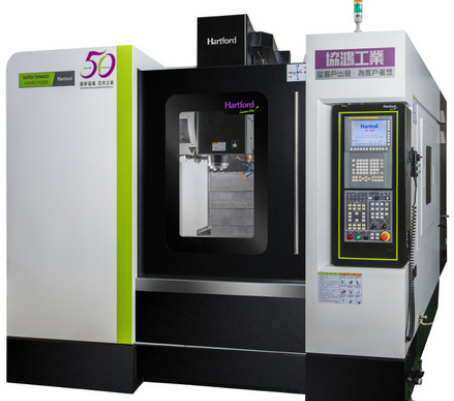

Machine Model | HCMC-1682 | ||
Table | Working surface | 1750x820 | mm |
Max. table load | 2200 | kg | |
Travel | Longitudinal travel (X-axis) | 1600 | mm |
Cross travel (Y-axis) | 820 | mm | |
Vertical travel (z-axis) | 660 opt. 820 | mm | |
Spindle | Spindle nose taper | #50 | |
Spindle speed (Pulley) | 4000 opt. 6000/8000 | rpm | |
Spindle speed (DDS) | 10000 opt. 12000 | rpm | |
Feed | Rapid traverse rate (X/Y/Z) | 20/20/18 | m/min |
ATC | Tool storage | A:24 (32/40) | pcs |
Read more |
