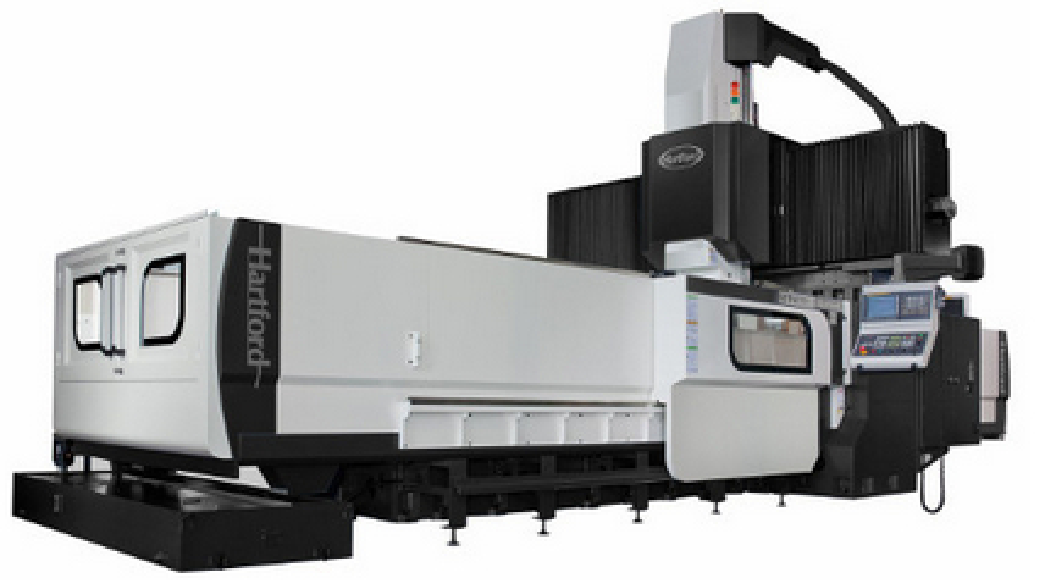

Machine Model | SW-323 | ||
Table | Working surface | 3000x2200 | mm |
Max. table load | 10000 | kg | |
Travel | Longitudinal travel (X-axis) | 3000 | mm |
Cross travel (Y-axis) | 2300 | mm | |
Vertical travel (z-axis) | 780 opt. 1070 | mm | |
Spindle | Spindle nose taper | ISO50 | |
Spindle speed (Gear) | 6000 opt. 4000 | rpm | |
Feed | Rapid traverse rate (X/Y/Z) | 12/12/12 | m/min |
ATC | Tool storage | S:20 A:32/40/60 | pcs |
Read more |

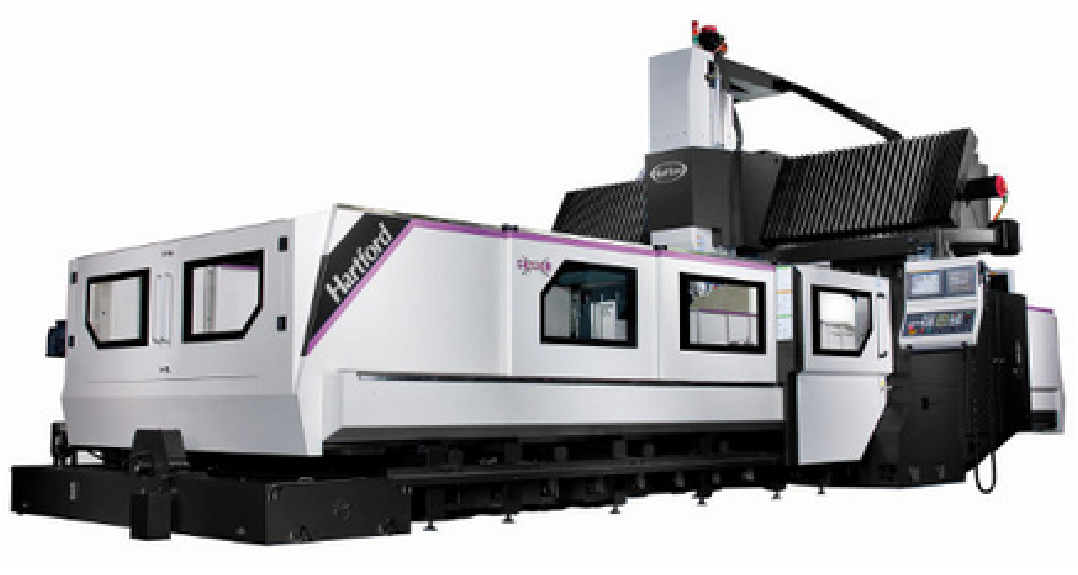

Machine Model | HSA-523 | ||
Table | Working surface | 5000x2200 | mm |
Max. table load | 15000 | kg | |
Travel | Longitudinal travel (X-axis) | 5000 | mm |
Cross travel (Y-axis) | 2300 | mm | |
Vertical travel (z-axis) | 780 opt. 1000/1200 | mm | |
Spindle | Spindle nose taper | ISO50 | |
Spindle speed (Pulley) | 10000 opt. 12000 | rpm | |
Spindle speed (DDS) | 6000 opt. 8000 | rpm | |
Feed | Rapid traverse rate (X/Y/Z) | 14/18/16 | m/min |
ATC | Tool storage | S:20 A:32 | pcs |
